A relay-control diagram may look fine on paper and still fail as soon as the start button is pressed. One misplaced contact is enough. In Simurelay, the same circuit can be built on an Android screen and its switching order checked before any physical panel is assembled. The Simurelay Mod APK focuses on classic electromechanical control: relay logic, contactors, timers, and motor circuits.

Assembling the control path

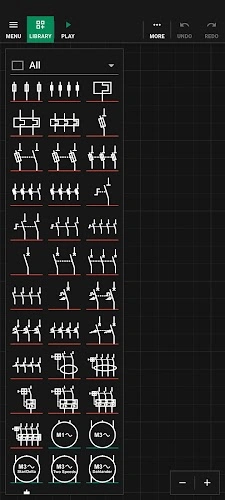

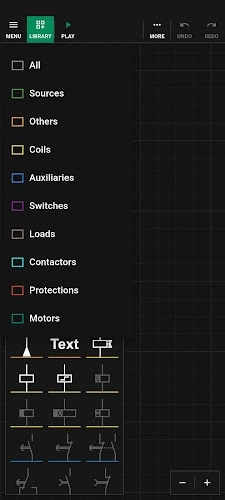

Start with a blank diagram. Pick the relays, switches, push buttons, and contactors needed for the control path, then place them on the workspace. Add a timer wherever the sequence needs a delay. The library also includes fuses and overload relays. Motor diagrams can use single- or three-phase elements. Once the layout makes sense, connect the parts wire by wire.

A basic motor starter might use a stop button, a start button, a contactor coil, a holding contact, and overload protection. More involved layouts can include interlocking contacts. Small mistakes matter here. If the holding contact is connected to the wrong point, the contactor may energize when the button is pressed and drop out as soon as it is released.

A circuit does not have to be finished in one sitting. Save it, open it later, and continue from the same layout. Separate projects are useful when two wiring arrangements need to be compared without repeatedly rebuilding one of them.

Following the circuit in Play mode

Switch to Play mode. The controls now respond to input, and pressing a button shows which relays or contactors change state. A timer connected at the wrong point will not produce the expected delay. Break the control path elsewhere and a motor element may not respond at all. The wiring is still visible, so the fault can be traced one contact at a time.

For an electrical student, the simulator is useful when a training panel is not available and the goal is to rehearse control logic. Technicians and electricians may also use the workspace to arrange an early circuit idea before deciding on the physical layout. Even then, Simurelay remains a simulator. A diagram that behaves correctly does not confirm conductor sizes, protection settings, component ratings, or the safety of a finished installation.

Save any important projects before replacing an existing installation with another APK. Android may block an in-place update when the installed app and the downloaded package carry different signatures. Removing the installed copy can also erase locally stored project data.
