The app collects display data from smartphones and then exports it to.csv files. See www.vieyrasoftware.net to (1) read about case usage in research and development and (2) get lesson plans for educators of science technology engineering and mathematics (STEM) fields including physics. The following are examples of data analysis and sensor generators that can be used to determine the accuracy and precision of sensors:

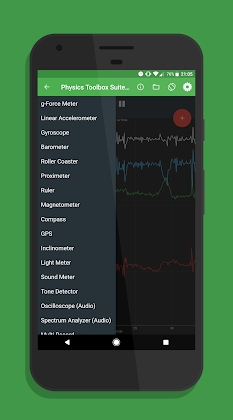

KINEMATICS

G-Forcemeter - Fn/Fg ratio (x, y.z. and/or total).

Linear Accelerometer- Acceleration (x, y or z).

Gyroscope - radial velocity (x y and/or z)

Inclinometer - azimuth roll pitch

Angler for vertical and horizontal angles

ACOUSTICS

Sound Meter - measure sound intensity

Tone Detector: frequency and musical tones

Tone Generator is a sound frequency producer

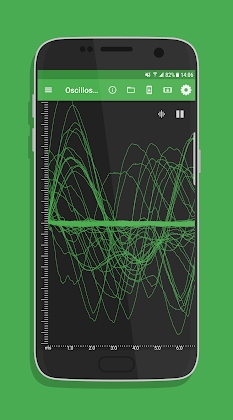

Oscilloscope: Wave shape and relative ampltude

Spectrum Analyzer -- graphical FFT

Spectrogram FFT waterfall

LIGHT

Light Meter – light intensity

The Color Detector – detects HEX colours within a rectangular area of the screen using the camera.

Color Generator – R/G/B/Y/C/M White and Custom Color Screen

Proximeter: periodic motion, timer (timer/pendulum modes).

Stroboscope (beta) - camera flash

Wi-Fi Signal Strength - Wi Fi signal strength

MAGNETISM

Magnetic field direction, bubble level and compass

Magnetometer-magnetometer intensity (x, y, z or total)

Magna-AR is an augmented reality visualization for magnetic field vectors

OTHER

Atmospheric pressure - Barometer

Ruler: Distance between two points

GPS = latitude, longitude and altitude speed direction. There are many satellites.

Battery temperature - System Temperature

COMBINATION

Multi Record: Select one of the sensors above to simultaneously collect data.

Dual Sensor: Display data from 2 sensors in real-time on graph

Roller Coaster- G-Forcemeter Linear Accelerometer Gyroscope, and Barometer

PLOTTING

Manual Data Plot: Enter data manually in order to create a graph.

GAME

Play - challenges

FEATURES

(a) Register: Press the red floating button to record. Save data to the folder icon.

(b) Export: Select an option to export data via email or shared on Google Drive and Dropbox. You can also transfer files that have been locally saved to the folder icon.

(c) Sensor information: To identify the vendor of the sensor and the current rate at which it is collecting data, click on the icon (i). This will allow you to view the type and operating principles of the sensor and link to other resources.

SETTINGS

Not all settings will be available for every sensor.

(a) Data Display: See data in vector or digital format.

(b) Graph display: Multi-dimensional data can be viewed in a single graph, or multiple graphs.

(c) Displayed Axis - Multi-dimensional data can be displayed on one shared graph by selecting total x, y or z-axis.

CSV Timestamp Format (d) Record the time of the clock or the time elapsed with sensor data.

(e) Line Width : Change the visual presentation of data using a thin medium or thick line.

(f) Sensor collection Rate: You can set the rate of your collection as Normal or Fastest game UI. When you select an option, the sensor collection rate will be displayed.

(g) Keep The Screen On: This prevents the app's screen from being turned off by itself.

(h) Calibrate: Select sensors must be calibrated.
